Clearaudio Concept Black Turntable (Satisfy Arm Packages)

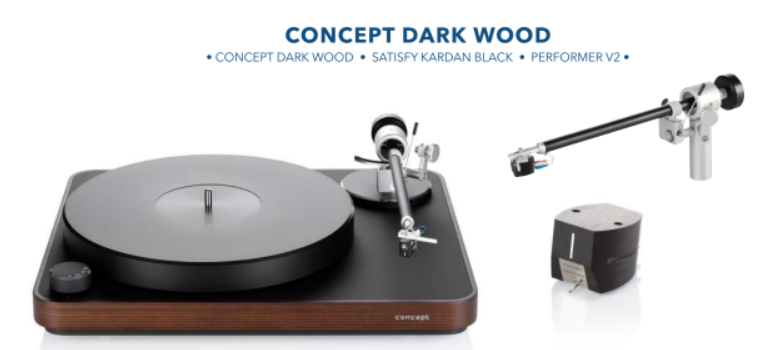

The Clearaudio Concept Black is an upgraded package which includes:
-Concept Black or Dark Wood Turntable
-Satisfy Kardan Black Tonearm
-Performer V2 MM Cartridge
This is a factory bundle, all components fully installed, set up and tested by Clearaudio.
Cartridges in photos may be different from the Performer V2. The Dark Wood option shown is $500 more - the plinth uses a different construction and is more labour-intensive to build.
*All models subject to availability, please call or email us for details.
Clearaudio's vision for the Concept: design an elegantly styled turntable package featuring a level of groundbreaking technology usually only found in high-end turntables, combining plug-and-play simplicity with outstanding sound quality and affordability.
Beneath the sleek, contemporary exterior is a level of technical sophistication unique to Clearaudio.
The Concept’s body is carefully crafted from medium-density wood fibre (or, optionally, pressure-formed solid wood) with a selection of smart made-to-match surface finishes. The body’s upper layer incorporates a special high-tech satined plastic compound designed to minimise unwanted resonance.
The DC motor is fed by an external voltage-stabilised power supply and is completely decoupled from the turntable’s body to ensure no mechanical interference.
Innovative, high-performing, user-friendly and affordable. Now that’s what we call an unbeatable Concept.
SATISFY KARDAN ARM
Designed for use with a wide range of turntables and cartridges, the award-winning Satisfy Kardan incorporates a range of features normally associated with some of the very best tonearms. The Kardan Black features a black aluminum arm tube.
A precise, magnetic antiskating adjustment with a gentle sensitiveness, without mechanic disturbance - for pure music.
Become a witness of revolutionary direct wiring, where the signal travels uninterrupted from the cartridge to the Phono-preamplifier.
Only a few amongst the best offer this feature – it's one of a kind.
Performer MM V2 SPECS
TOTAL MASS 8.4g (± 0.4g)
FREQUENCY RESPONSE 20Hz - 20kHz
OUTPUT VOLTAGE (1KHZ, 5CM/S)~ 3.3mV
CHANNEL SEPARATION (1KHZ)20dB
CHANNEL BALANCE (1KHZ)1.5dB
TRACKING ABILITY 80μm
RECOMMENDED TRACKING FORCE 2.2g ± 0.3g
COIL IMPEDANCE (1KHZ)0.66kΩ
COIL INDUCTANCE 400mH
LOAD RESISTANCE 47kΩ
LOAD CAPACITANCE 100pF
CANTILEVER / STYLUS SHAPE Aluminium / elliptical
COMPLIANCE 15μ/mN
CARTRIDGE BODY Ebony wood
CONSTRUCTION DETAILS Resonance-optimised bodywork; body comprises medium-density wood fibre or pressure-formed solid wood; upper layer incorporates high-tech satined plastic compound.
SPEED RANGES Electronic speed selection, 33 ⅓, 45 rpm (78 rpm optional)
DRIVE UNIT Decoupled and resonance damped DC motor, flat belt-drive and plug-in power supply unit designed for worldwide use with all networks and power frequencies.
BEARING Polished and tempered steel shaft in a sintered bronze housing, running on a Teflon thrust-pad
PLATTER Synthetic material, CNC precision milled surface; 30mm / 1.18 inch thickness; aluminum sub-platter
SPEED VARIATION ± 0.05 %
POWER CONSUMPTION Max. consumption: 1.5 Watt, Consumption in operation: 0.5 Watt, Off mode: 0.0 Watt
WEIGHT Approx. 7.5kg / Wood: 7.9kg (incl. motor, tonearm and cartridge)
DIMENSIONS (W/D/H in inches)Approx. 16.54 x 13.78 x 4.92 (with tonearm)
WARRANTY 2 years*
* Provided the warranty card is fully completed and returned to Clearaudio within 2 weeks of purchase.
