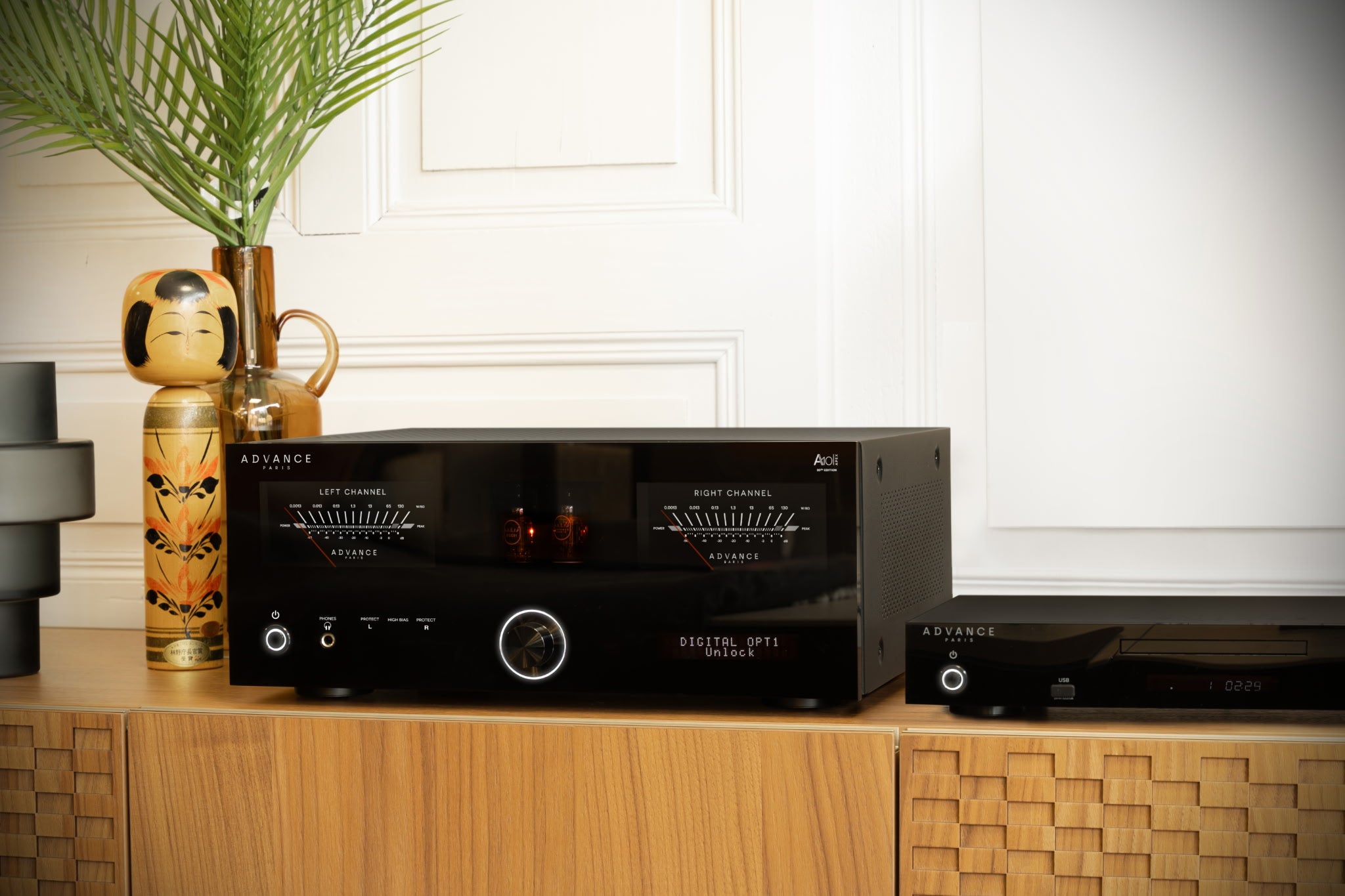

The A10 APEX features the hybrid design of our flagship integrated amplifiers, with high power output (130W in Class A/B at 8 Ω) and the same musicality that is recognised worldwide.
To celebrate the brand’s 30th anniversary, we are presenting a special limited edition 30TH EDITION with a black finish.
The A10 APEX combines timeless design with modern technology to deliver power, musicality and ease of use.
The A10 Apex amplifier has recently received an “Outstanding” Award from the highly respected online reviewer A British Audiophile, Tarun Sharma.
You can watch the review here:
Key features
• Preamplifier with 2 ECC81/12AT7 tubes offering warm sound and great musicality.
• 2x130W Class A/B amplifier combining power and listening ref inement.
• High-Bias function activating double Class A bias to enjoy Class A at higher power.
• Bluetooth aptX AD - LL option (A-BTC module): allows you to send music from your smartphone/tablet/computer to the A10 APEX or send sound from a source connected to the A10 APEX to Bluetooth headphones.
• Zone A and B: Dual speaker outputs.
Connections & sources
• 7 analogue inputs: (5x) RCA, (1x) MM phono, (1x) XLR
• 5 digital inputs: 3 optical, 1 coaxial, 1 USB for computer
• Bluetooth aptX AD - LL option (A-BTC module)
• 1 HDMI eARC socket with A10 APEX start-up when the TV is switched on and volume control
Functions & settings
• Settings: loudness, bass, treble, balance
• Automatic standby adjustable from 5 to 60 minutes
• Trigger IN/OUT to synchronise the switching on/off of a separate power amplifier
• Connection possible for 2 subwoofers + separate PREOUT output and AMP-IN input
• Fixed REC-OUT output for recorder (cassette, MD, etc.)
• 110-220V voltage selector
Advanced options
• High-Bias switch: activates double Class A bias to enjoy Class A at higher power levels.
Specifications:
Output Power 8-ohms: 2x130W RMS.
Output Power 4-ohms: 2x198W RMS.
Frequency Response: (-1db) 20Hz-80kHz (31W, 8-ohm.
Distortion: 0.045% (1 kHz, 90W, 8-ohm).
Signal to Noise Ratio: 106 db (1 kHz, 90W, 8-ohm).
Transformer type: Toroidal/380VA.
DAC: ESS9018.
Digital Inputs: Optical – 24-bit / 192 kHz PCM, Coaxial – 24-bit / 192 kHz PCM, USB Audio 24-bit / 192 kHz PCM / DSD64 / DSD-128, HDMI eARC PCM Stereo.
A-BTC Input: Bluetooth Receiver (Optional).
Inputs: 5x RCA Line, 1x RCA Phono MM. 1x XLR, 3x Optical, 1x Coaxial,1x USB-Bm 1x HDMI eARC.
RCA Outputs: 1x Rec-Out, 1x Pre-Out, 2x Sub-Out.
Headphone Jack: 6.35mm.
High Bias: ON/OFF Switch.
Update: USB Key UPDATE Port.
Trigger Jack: 2x 12v.
Remote Control: REM19
Dimensions: 17” x 13.9” x 6.9”.
Weight: 29 lbs.
