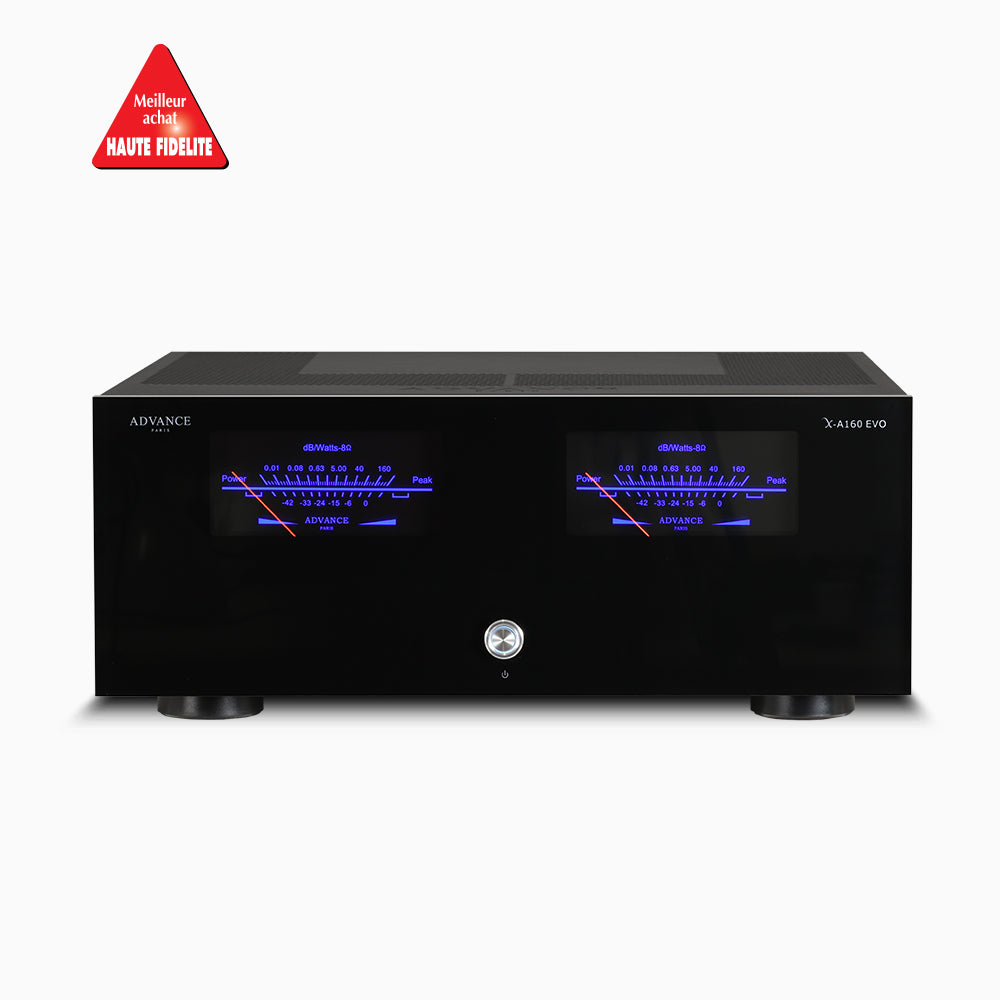

Advance Paris X-A160 EVO Stereo Power Amplifier
Description
New design, power transistors identical to the MAA 1000, new power supply, more power, more music, more modern presentation, such is the X-A160 EVO.
The X-A160 EVO amplifier consists of an ultra-rigid, compartmentalized chassis, ensuring effective shielding, thus eliminating any risk of radiation between the different circuits of the device.
The use of “Audiophile” type components guarantees a reproduction of your favorite music with finesse and subtlety.
The high-power supply combined with the "very high current" power transistors (NJW0281G – NJW0302G) of the MAA 1000, reproduces the most demanding dynamics.

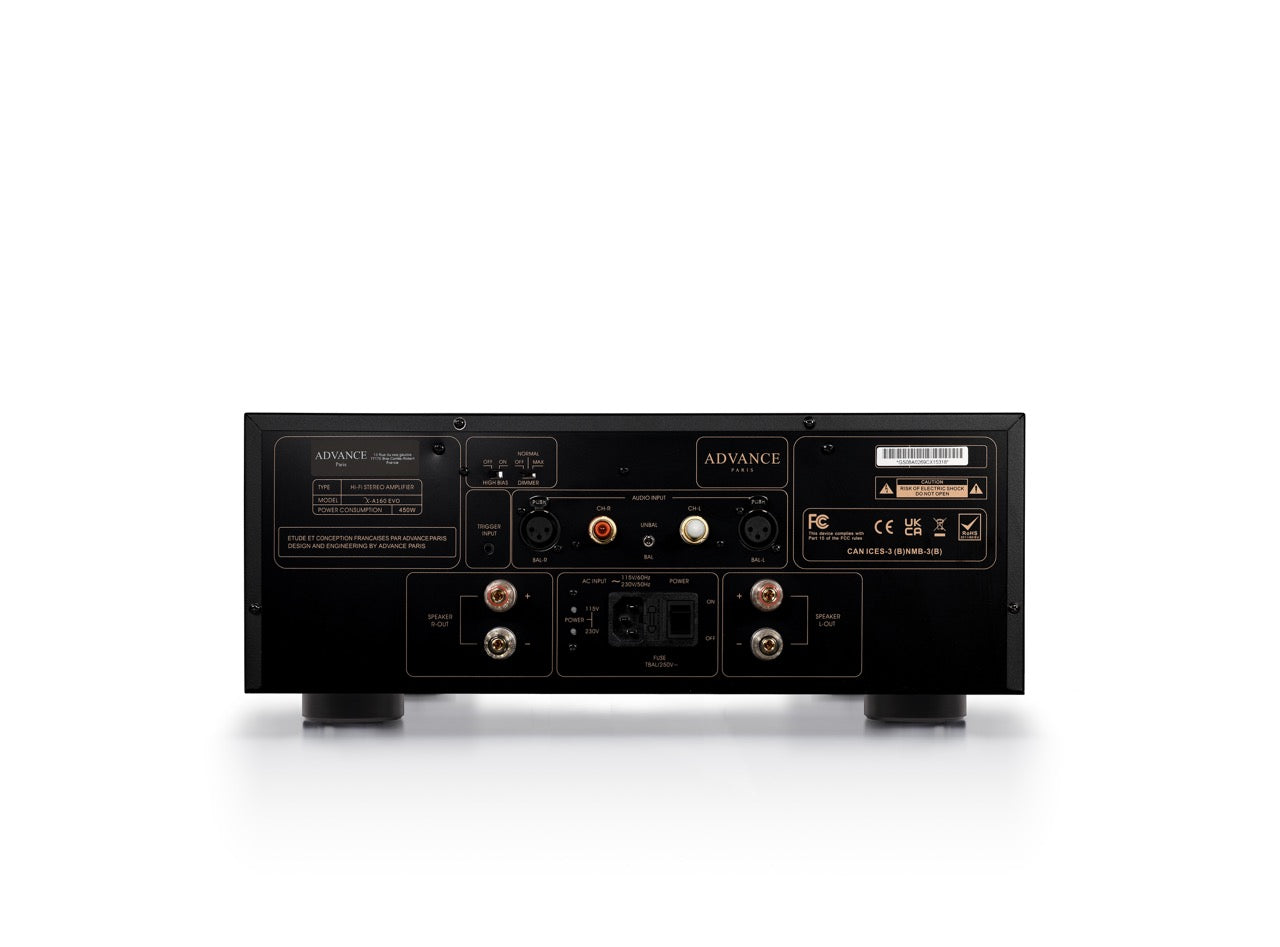

The X-A160 EVO delivers 160W per channel in class AB. A switch located on the rear of the unit allows the X-A160 EVO to deliver the first few watts in class A. Beyond this power, it switches to class AB automatically.
Specifications
| Output power 8Ω |
2 x 160 W RMS |
|---|---|
| Output power 4Ω |
2 x 240 W RMS |
| Bandwidth |
10 Hz – 80 kHz |
| Distortion |
< 0.07% |
| Signal-to-noise ratio |
> 120 dB |
| Channel separation |
> 80 dB |
| Input Impedance |
20 kΩ |
| Balanced Input Impedance |
38 kΩ |
| Mains voltage |
115-230V |
| Standby power consumption |
< 0.5W |
| Maximum consumption. |
500W |
| Transformer power |
700W |
| Transformer |
Toroidal |
| Height |
160 mm |
| Width |
440 mm |
| Depth |
430 mm |
| Net Weight |
19 kg |
| Product type |
Power block |
| VU Meter |
Yes |
| Guarantee |
2-year warranty |
