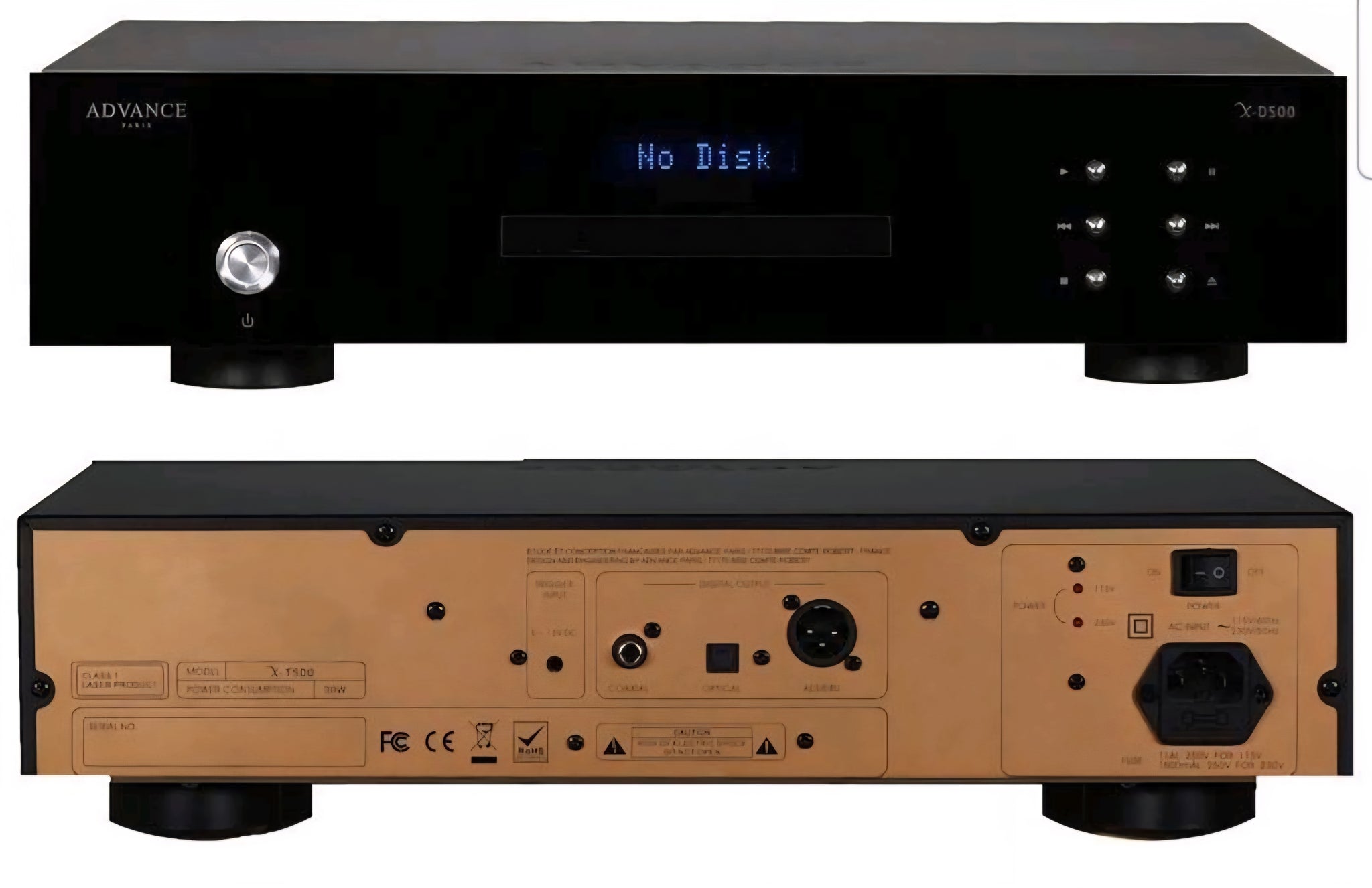

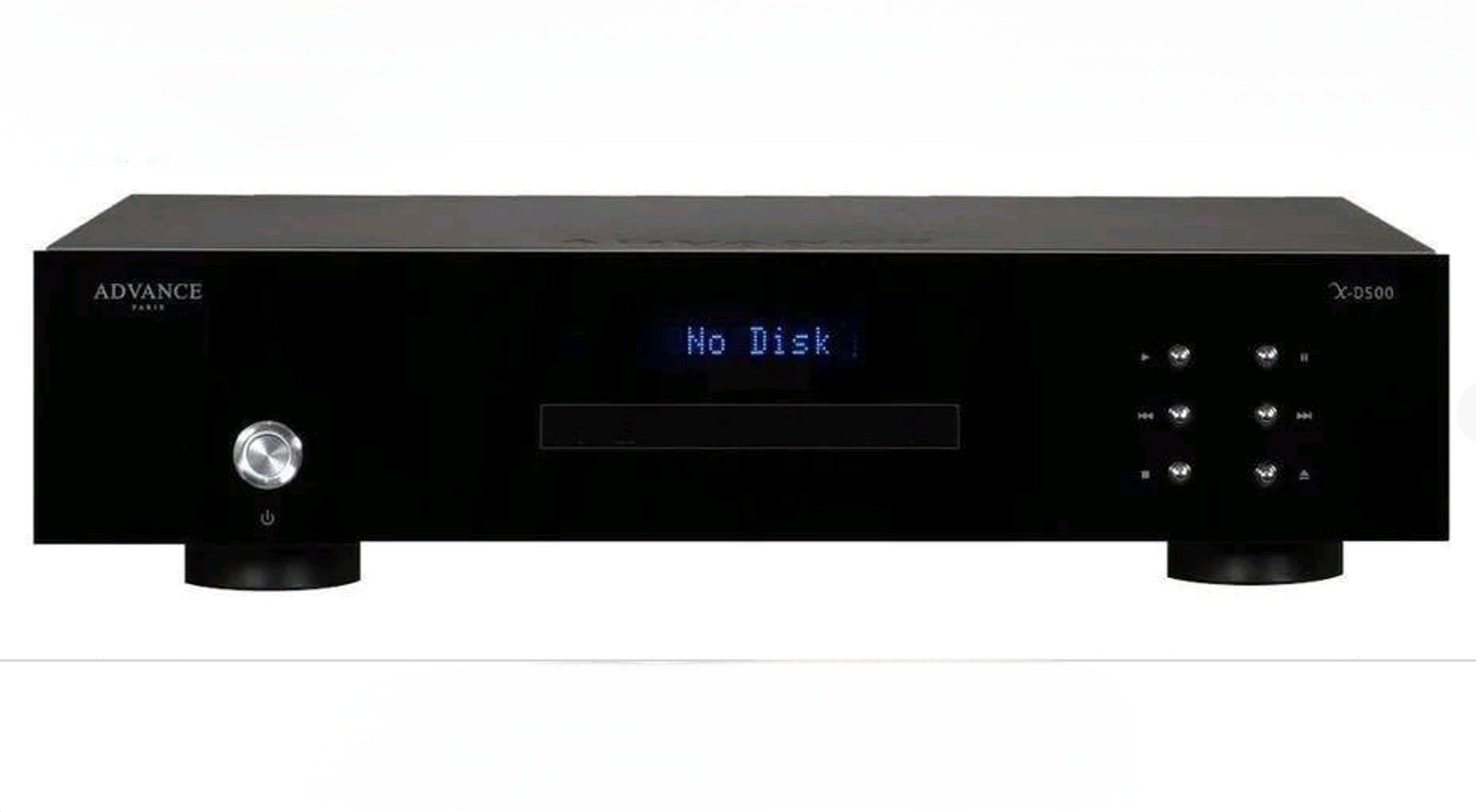

X-D500 CD Transport
The X-D500 is a CD Transport that concentrates on its main task: extracting the purest digital information from the CD.
Analog conversion must be carried out via a digital-to-analog converter (DAC) or an amplifier with digital sockets.
The linear power supply is based on 2 toroidal transformers for total separation of the different power supplies - the circuits required for product operation (such as mechanical management) are separated from the laser signal processing.
An up-sampling function transforms the original digital signal (16bit/44.1kHz) into a high-definition signal (24bit/96kHz or 24bit/192kHz).
The X-D500 benefits from a highly rigid chassis thanks to its mechanical design. Equipped with Coaxial (RCA), Optical (TOSLINK) and AES / EBU (XLR) digital outputs, the X-D500 is a high-end CD source for yourHi-Fi system.
Compatible with all our products (except the X-i50BT), it will allow you to enjoy your CDs, media that are still a reference for their audio quality.
Specifications
| AC input compatibility |
115V / 230V
|
| Standby power consumption |
Inf. TO 0.5 W
|
| Max. power consumption |
16,1 W
|
| Transformer power |
15 VA / 25 VA
|
| Transformer type |
(2X) Toroidal
|
| Outputs |
AES/EBU (XLR - 110 Ohm), Coaxial (RCA - 75 Ohm), Optical (TOSLINK)
|
| Remote control |
Yes
|
| Trigger socket |
1 (IN) 5-12V
|
| Oversampling |
Yes (24bit/96kHz - 24bit/192kHz)
|
| Accessories |
Power cord, IR remote control
|
| Width |
431 mm
|
| Height |
109 mm
|
| Depth |
372 mm
|
| Net weight |
8.2 kg
|
| Gross weight |
9.6 kg
|
| Uninterrupted CD playback |
No (micro-cut)
|
