The A10 APEX features the hybrid design of our flagship integrated amplifiers, with high power output (130W in Class A/B at 8 Ω) and the same musicality that is recognised worldwide.
To celebrate the brand’s 30th anniversary, we are presenting a special limited edition 30TH EDITION with a black finish.
The A10 APEX combines timeless design with modern technology to deliver power, musicality and ease of use.
Key features
• Preamplifier with 2 ECC81/12AT7 tubes offering warm sound and great musicality.
• 2x130W Class A/B amplifier combining power and listening ref inement.
• High-Bias function activating double Class A bias to enjoy Class A at higher power.
• Bluetooth aptX AD - LL option (A-BTC module): allows you to send music from your smartphone/tablet/computer to the A10 APEX or send sound from a source connected to the A10 APEX to Bluetooth headphones.
• Zone A and B: Dual speaker outputs.

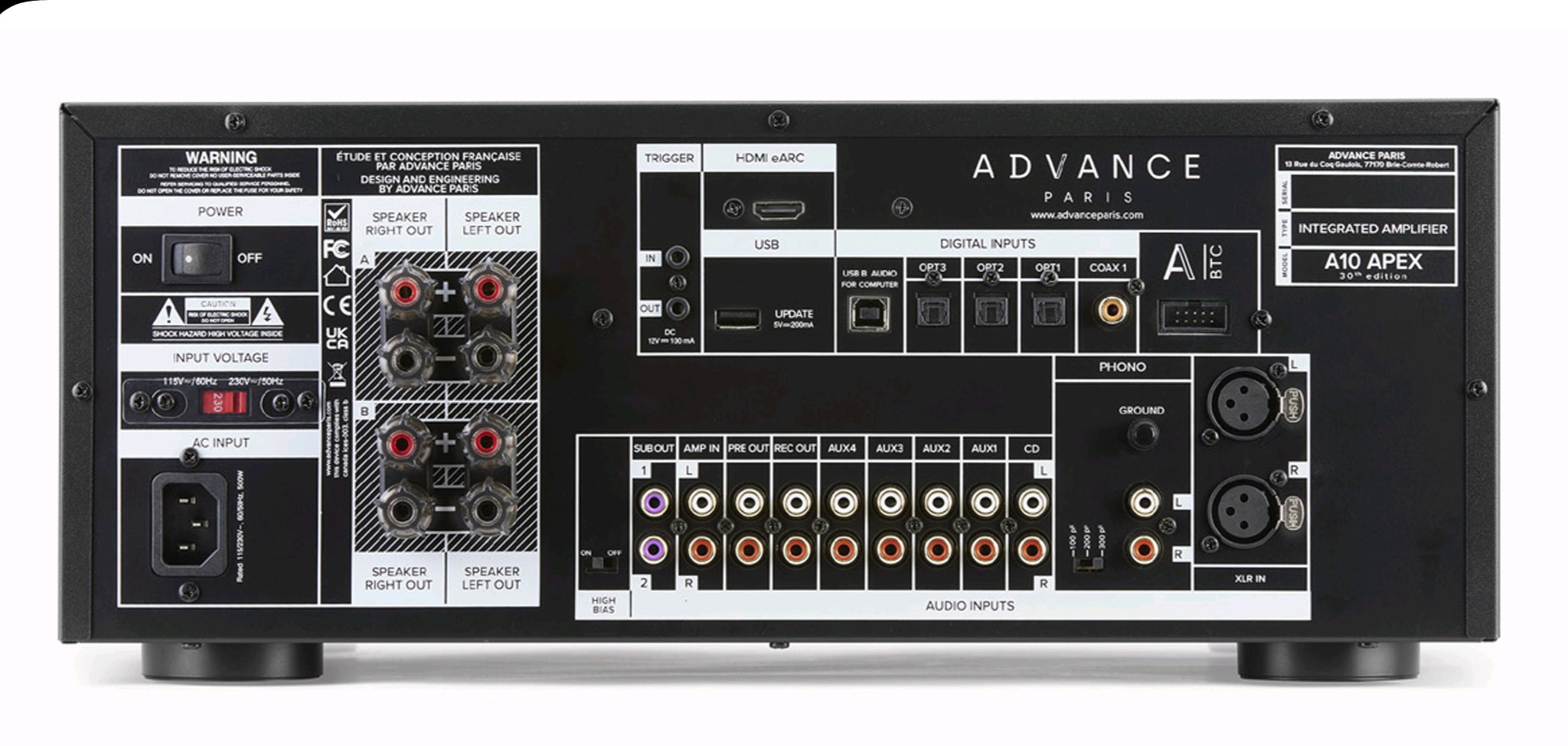

Connections & sources
• 7 analogue inputs: (5x) RCA, (1x) MM phono, (1x) XLR
• 5 digital inputs: 3 optical, 1 coaxial, 1 USB for computer
• Bluetooth aptX AD - LL option (A-BTC module)
• 1 HDMI eARC socket with A10 APEX start-up when the TV is switched on and volume control
Functions & settings
• Settings: loudness, bass, treble, balance
• Automatic standby adjustable from 5 to 60 minutes
• Trigger IN/OUT to synchronise the switching on/off of a separate power amplifier
• Connection possible for 2 subwoofers + separate PREOUT output and AMP-IN input
• Fixed REC-OUT output for recorder (cassette, MD, etc.)
• 110-220V voltage selector
Advanced options
• High-Bias switch: activates double Class A bias to enjoy Class A at higher power levels.

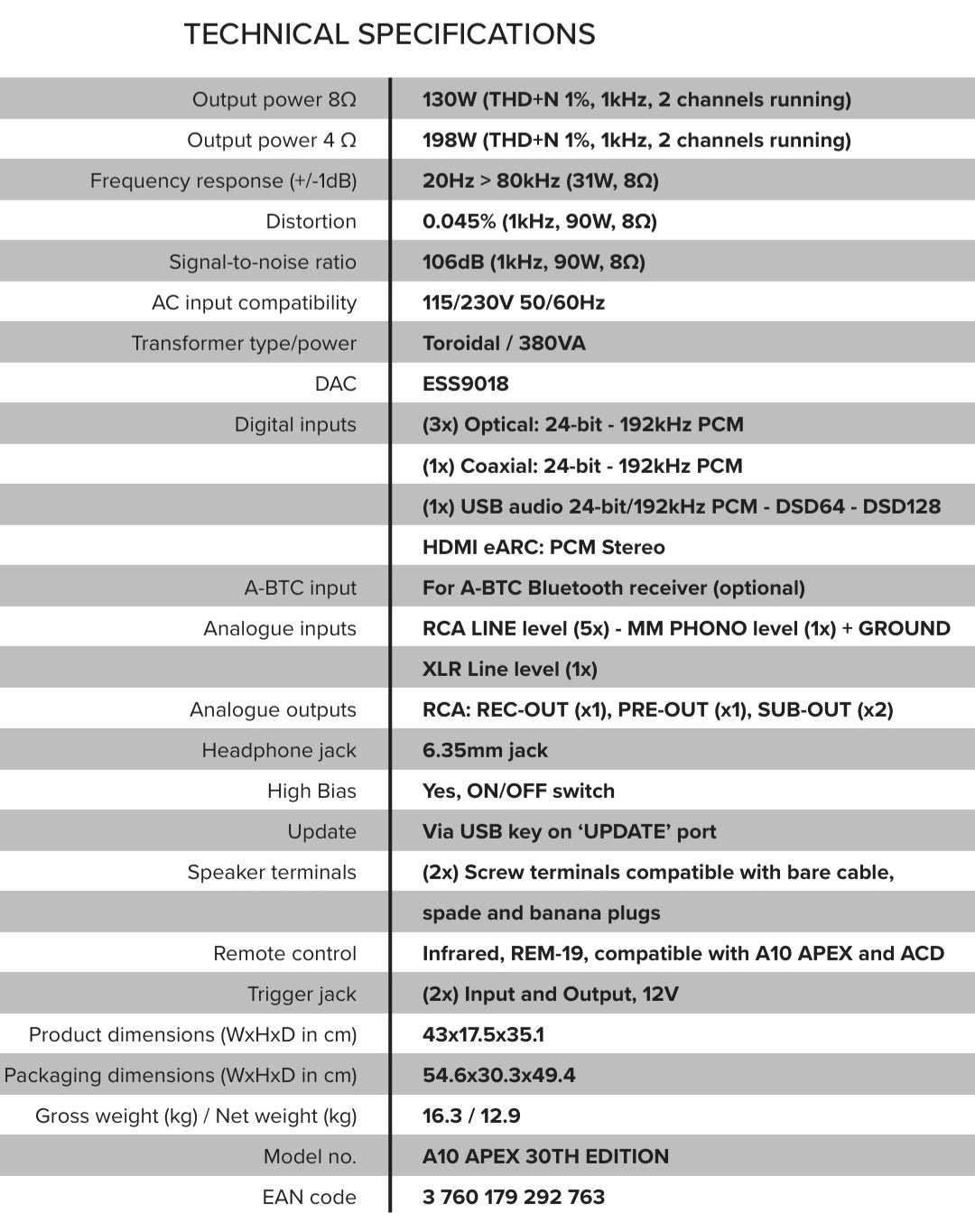

Specifications:
Output Power 8-ohms: 2x130W RMS.
Output Power 4-ohms: 2x198W RMS.
Frequency Response: (-1db) 20Hz-80kHz (31W, 8-ohm.
Distortion: 0.045% (1 kHz, 90W, 8-ohm).
Signal to Noise Ratio: 106 db (1 kHz, 90W, 8-ohm).
Transformer type: Toroidal/380VA.
DAC: ESS9018.
Digital Inputs: Optical – 24-bit / 192 kHz PCM, Coaxial – 24-bit / 192 kHz PCM, USB Audio 24-bit / 192 kHz PCM / DSD64 / DSD-128, HDMI eARC PCM Stereo.
A-BTC Input: Bluetooth Receiver (Optional).
Inputs: 5x RCA Line, 1x RCA Phono MM. 1x XLR, 3x Optical, 1x Coaxial,1x USB-Bm 1x HDMI eARC.
RCA Outputs: 1x Rec-Out, 1x Pre-Out, 2x Sub-Out.
Headphone Jack: 6.35mm.
High Bias: ON/OFF Switch.
Update: USB Key UPDATE Port.
Trigger Jack: 2x 12v.

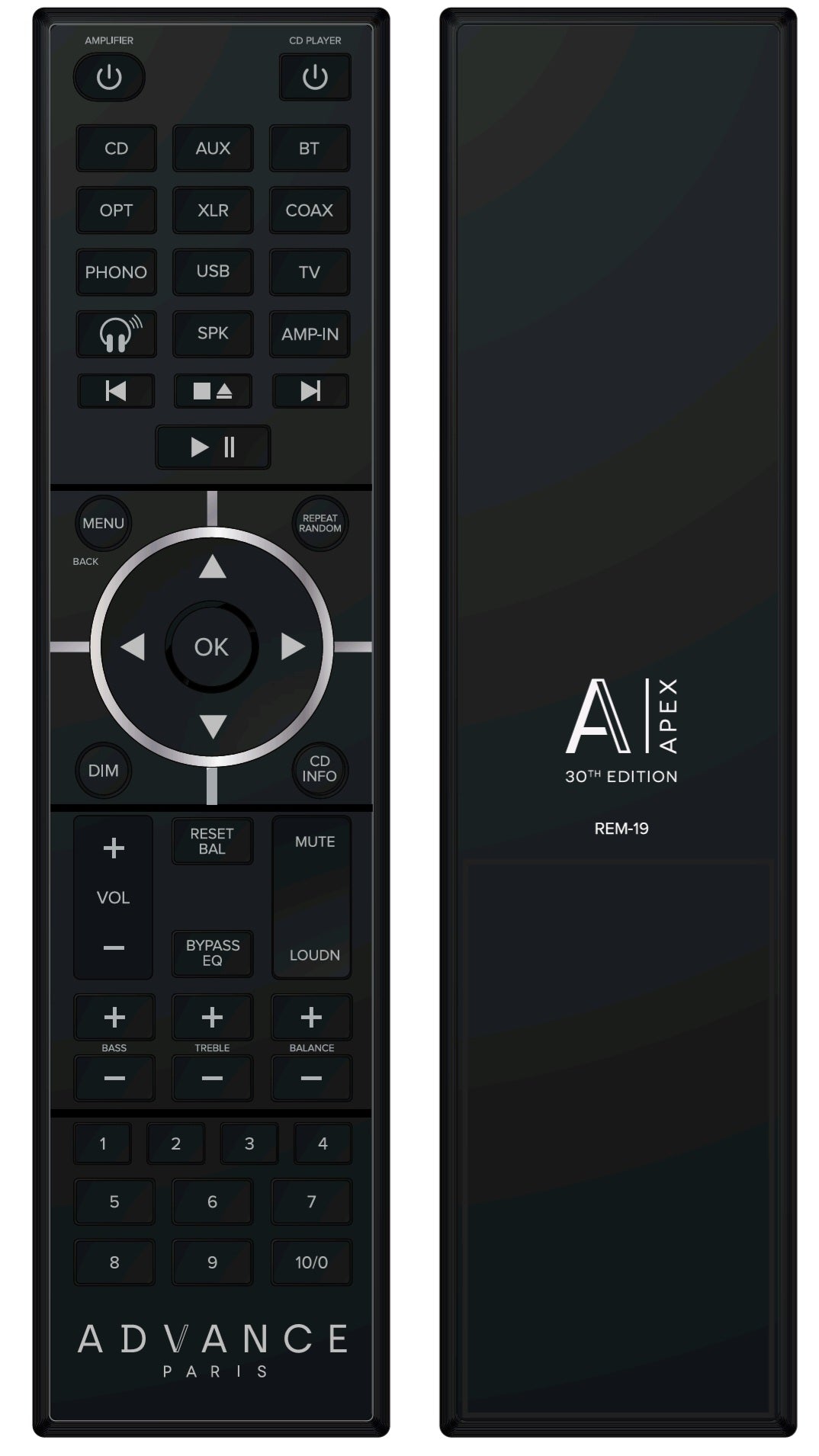

Remote Control: REM19
Dimensions: 17” x 13.9” x 6.9”.
Weight: 29 lbs.
