Parasound Halo JC1+ Monoblock Power Amplifier (Each)
JC1+ – Monoblock Amplifier, 1 x 450watt, 8 ohm (Black or Silver Finish)

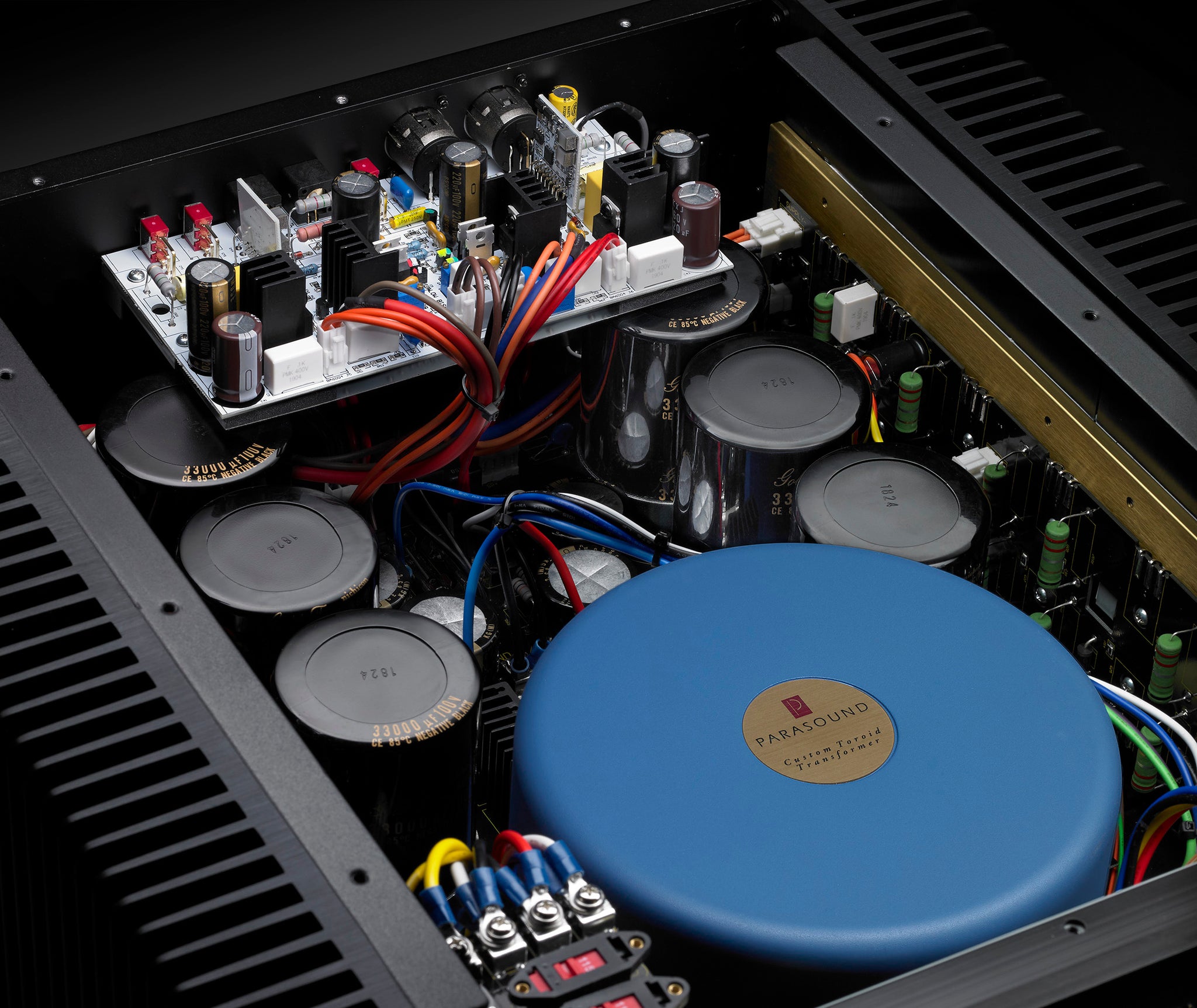

The Parasound JC1+ delivers monoblock performance on a majestic scale—450 W into 8 Ω, over 1,300 W into 2 Ω, and up to 25 W in pure Class A. Whether it’s the intimate tones of solo piano or the thunder of orchestral crescendos, the JC1+ delivers every detail with uncanny control, space, and realism. Built on John Curl’s decades-long halo legacy, this amp raises the bar with rugged R-core power supply design, system tuning switches, and precision-grade audio components. Its transparent performance and refined execution make it ideal for high-resolution systems, audiophile-level home theaters, and demanding speaker pairings alike. 400 -> 450 Watts @ 8Ω, 800 -> 850 Watts @ 4Ω, 1200 -> 1300 Watts @ 2Ω, Filter capacitance: 132,000 -> 198,000 uF, Transformer capacity: 1.9 -> 2.1kVA, Output transistors: 18 -> 24 Sanken 60Mz devices. Peak current: 135 -> 180 amps, Weight: 64 -> 83 lbs net, Bybee Music Rails™ active high frequency noise filters, John Curl driver stage employs a new cascode circuit design, FR-408 input circuit board material improves HF signal integrity, Gain switch to select 29 dB or 23 dB gain, R-core power transformer for input stage, Input circuit board is shielded, Double thickness copper on output/power supply circuit boards, Gold-plated internal audio signal path connectors, Custom CHK Infinium speaker binding posts, Looping Neutrik XLR output for easier bi-amping, Front panel power indicator LED, Updated auto turn on circuit with5mm 12V trigger jacks. Circuitry designed by legendary John Curl Ultra-high bias Class A/AB operation, 25 watts of pure Class A power, Stable with speaker impedance dips below 1Ω, Bybee Music Rails™ -active high frequency filters for input stage, New John Curl driver stage employs a cascode circuit for greater open loop bandwidth & superior linearity, Gain switch to select 29 dB or 23 dB gain for optimum compatibility with high gain preamps or extremely efficient speakers, R-core transformer for input stage suppresses noise on power line, 6 massive 33,000 uF Nichicon Gold Tune filter capacitors for output stage, 22,400 uF input stage power supply filter capacitors, independent of the main power supply, Dual CHK Infinium, custom 5-way speaker binding posts for easy bi-wiring, Neutrik locking XLR balanced input & loop output jacks, Vampire 24k gold-plated RCA input & loop output jacks, Direct-coupled signal path, no capacitors or inductors in the audio path, JFET input stage, MOSFET driver stage, 24 beta-matched 15 ampere, 230V, 60 MHz bipolar output transistors, 2.1 kVA shielded toroid power transformer with premium H18 grade core, Independent power supplies for input stage, driver stage & output stage, Full power is rated all the way down to 2Hz for unrestricted low-end bass, Harris hyper-fast soft-recovery bridge diode rectifiers, REL & Nichicon Muse capacitors, DC servo & relay protection circuits, AC turn-on inrush surge protection with relay bypass, Automatic turn-on by 12 V trigger or audio sensing, 4 rack space chassis with rear carry handles, Rack mount hardware is included.
Specifications:
Frequency Response: 2Hz-120 kHz +0/-2 dB, 20Hz-20kHz, +0/-0.25 dB.
Total Harmonic Distortion (THD): < 0.15 % at full power, < 0.02 % at typical listening levels.
IM Distortion: < 0.03 %.
Input Impedance: Unbalanced: 50 kΩm Balanced: 100 kΩ, (50 kΩ per leg).
S/N Ratio >122 dB, IHF A-weighted, bias set to Low, >120 dB, IHF A-weighted, bias set to High, >113 dB, Unweighted, bias set to Low, >111 dB, Unweighted, bias set to High).
Total Gain: 29 dB (Gain switch set to normal), 23 dB (Gain switch set to low).
Dimensions: Width: 17-5/8" (448mm), Height without feet: 7-1/8” (181mm), Height with feet: 7-3/4" (197mm), Depth: 20" (509mm), Depth with Cables: 21-1/2” (546mm).
Net Weight: 83 lb.
Shipping Weight 107 lb.
