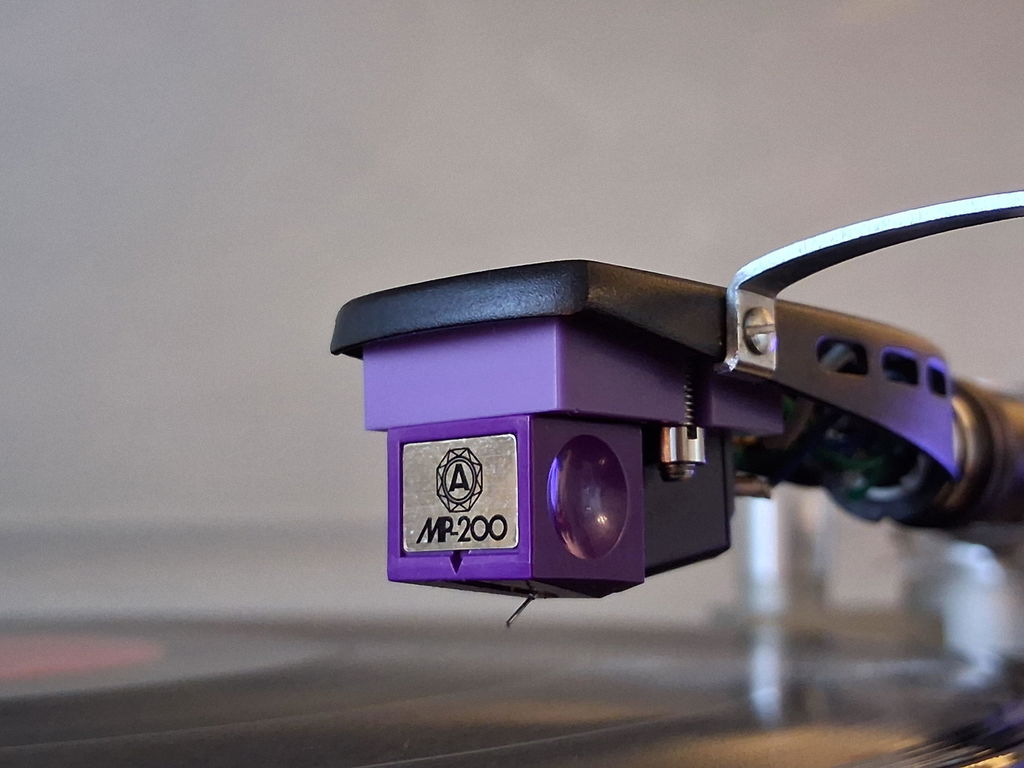

Nagaoka MP-200 Moving Permalloy Phono Cartridge

Nagaoka MP-200 Moving Permalloy Phono Cartridge

  • $569.00
    Unit price per
  • Save $45.95
Shipping calculated at checkout.


The Boron-cantilevered MP200 is an audiophile favourite, and represents "level 1" of Nagaoka's high-end offerings. The MP200 requires a preamp load resistance of 47K Ohms, like most other high-output cartridges. Made in Japan.



Details

■ Balanced emphasis model - ideal for classical and jazz
■ Output voltage: 4 mV (5 cm / SEC)
■ Frequency response: 20 Hz to 23 KHz
■ Channel separation: 25 dB (1 KHz)
■ Channel balance: 1.5 dB or less
■ Load resistance : 47 KΩ
■ Load capacitance: 100 pF
■ Cantilever: boron
■ Needle tip: 0.4 × 0.7 mil ellipse · diamond
■ Appropriate stylus pressure: 1.5 to 2.0 g
■ Cartridge weight: 6.5 g
