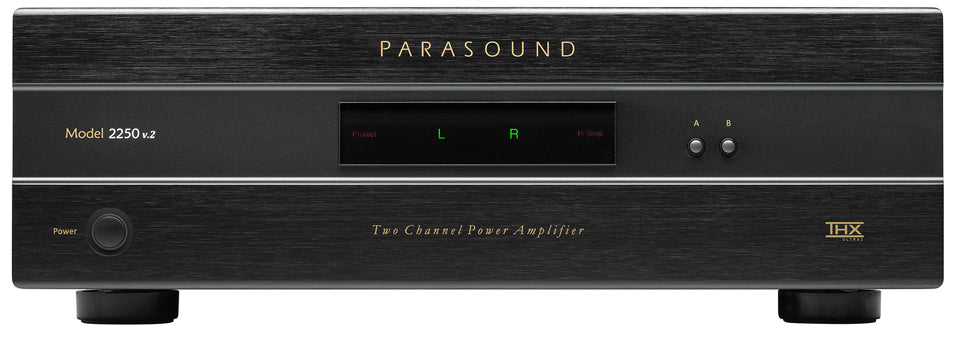

Parasound NewClassic 2250v2 Stereo Power Amplifier
NC 2250v2 – Stereo Power Amplifier, 2 x 275watt, 8 ohm (Black Finish Only)
The NC 2250v2 packs serious muscle into a 3U chassis—perfect for music lovers and home theater enthusiasts looking to upgrade without expanding their setup. It delivers clean, consistent performance even under heavy loads. Designed for real‑world headroom, the NC 2250v2 delivers 275 W x2 into 8 Ω, 400 W x2 into 4 Ω (and 2 Ω with the load selector), or 750 W bridged mono, with Class‑AB topology, 45 A peak
current, and THX Ultra2 certification. It adds dual A/B speaker outputs with lockout, a switchable 20/40 Hz high‑pass filter, Gold-plated RCA input jacks, and 12 V trigger or audio‑sense auto‑on. THX Ultra2 certified, 275 watts x 2 into 8 Ω (all channels driven), 400 watts x 2 into 4 Ω
or 2 Ω (all channels driven), 750 watts x 1 bridged into 8 Ω or 4 Ω, 45 amps peak current per channel, 2 Ohm stable operation with load

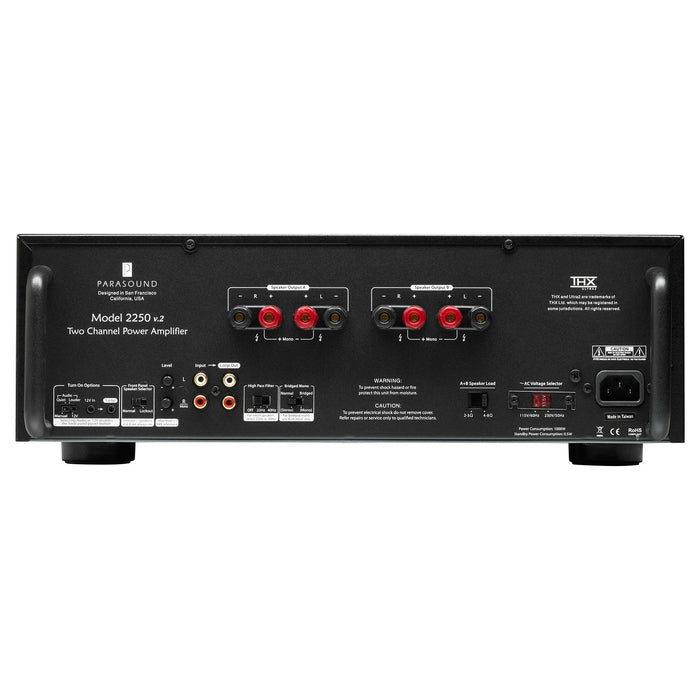

selector switch, Two pairs of speaker outputs with front panel A/B buttons, Rear-mounted lockout switch disables front A/B buttons, High pass filter, switchable for 20Hz or 40Hz, Automatic on/off by DC trigger with looping output, Automatic on/off by audio signal with 2 sensitivity settings, Fully discrete circuitry with high current toroid transformer, Bridging switch for stereo or mono operation, Efficient, low heat design DC Servo and relay protection circuits, Rear-mounted left and right gain controls, Standby, channel status and high temperature indicators, Gold-plated RCA input jacks, Heavy duty 24k gold-plated 5-way speaker terminals, 115/230v selector on rear panel, 3U rack mount kit available separately (Model RMK33).
Specifications:
Frequency Response: 20 Hz - 50 kHz, +0/-3 dB, 1 watt.
Total Harmonic Distortion: 0.20% at full rated output, 0.015% at average listening levels.
S/N Ratio: 114 dB at rated output, IHF A-weighted, 106 dB at rated output, unweighted, 93 dB at 2.828 V output, IHF A-weighted, 84 dB at 2.828 V output, unweighted.
IM Distortion: 0.05 %.
Input Impedance: 33 kΩ.
Dimensions: Width: 17.25" (437mm), Height with feet: 6", Depth: 18.5" with cables connected.
Net Weight: 43 lb.
