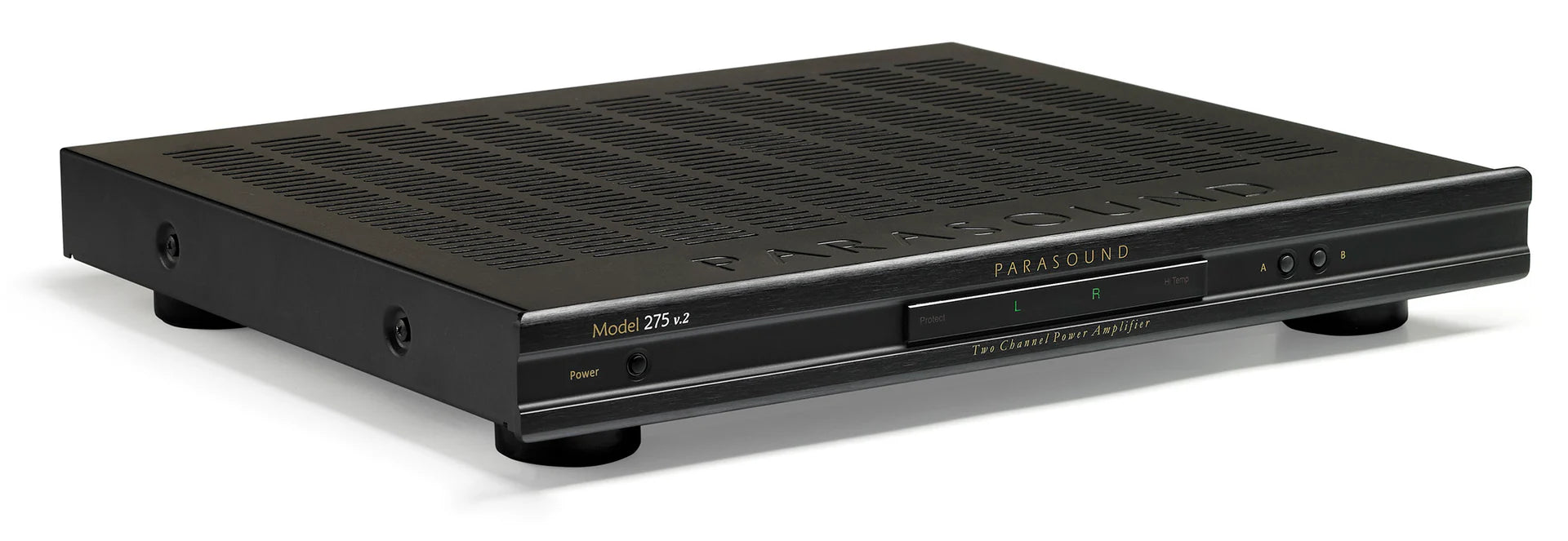

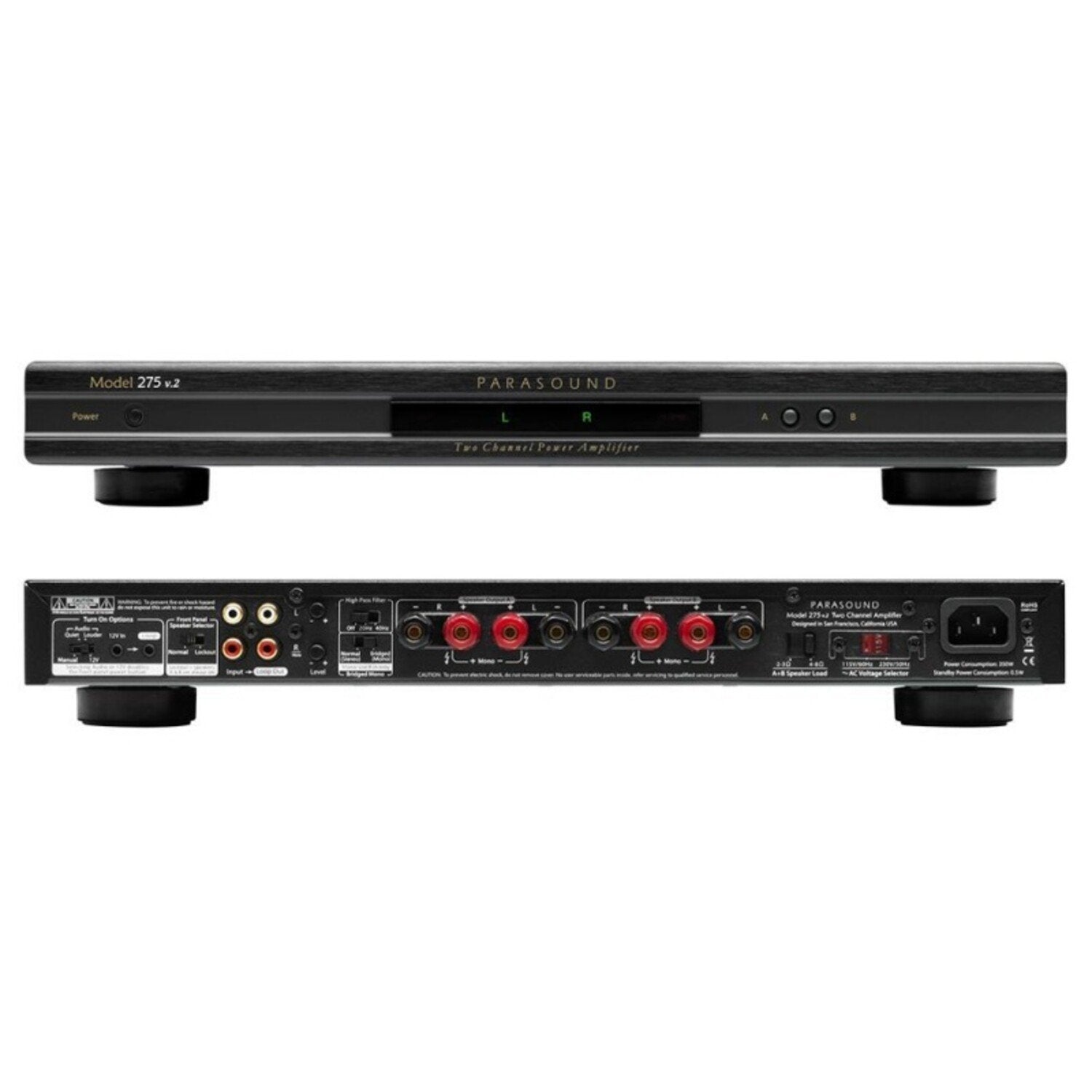

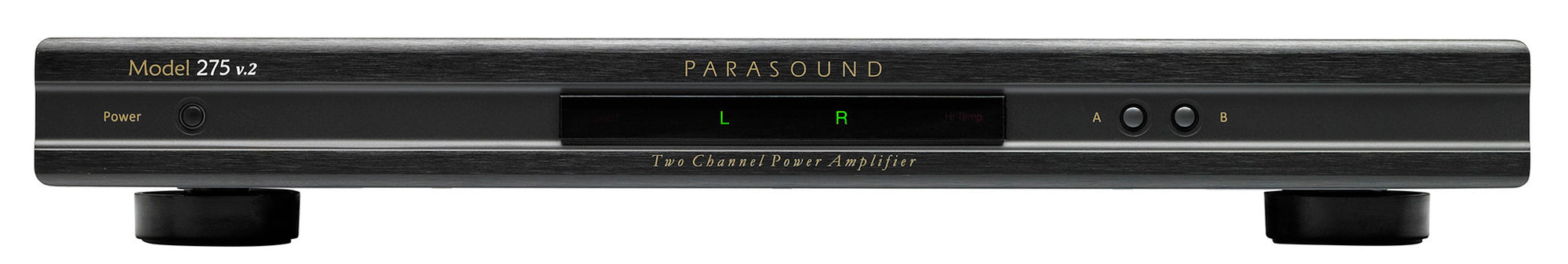

Parasound NewClassic 275v2 Stereo Power Amplifier
NC 275v2 – Stereo Power Amplifier, 2 x 90watt, 8 ohm (Black Finish Only)

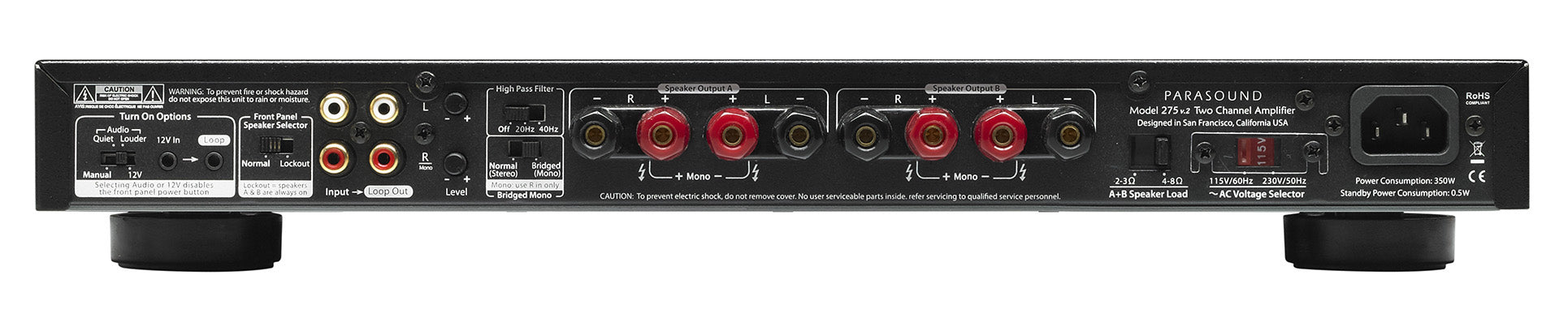

Drop the NC 275v2 into your system and the whole presentation tightens up—voices lock center‑stage, bass digs deep without bloat, and big moments stay calm, clear, and composed. In just 1U, it delivers 90 W x2 into 8 Ω (150 W x2 into 4/2 Ω) or 200 W bridged mono. A fully discrete Class‑AB design with a high‑current toroidal transformer supplies clean current, while a switchable 20/40 Hz high‑pass filter and dual A/B speaker outputs make real‑world setups easy. 90 watts x 2 into 8 Ω (all channels driven), 150 watts x 2 into 4 Ω or 2 Ω (all channels driven), 200 watts x 1 bridged into 8 Ω or 4 Ω, 20 amps peak current per channel, 2 Ohm stable operation with load selector switch, Two pairs of speaker outputs with front panel A/B buttons, Rear-mounted lockout switch disables front A/B buttons, High pass filter, switchable for 20Hz or 40Hz, Automatic on/off by DC trigger with looping output, Automatic on/off by audio signal with 2 sensitivity settings, Fully discrete circuitry with high current toroid transformer, Bridging switch for stereo or mono operation, Efficient, low heat design, DC Servo and relay protection circuits, Rear-mounted left and right gain controls, Standby, channel status and high temperature indicators, Gold-plated RCA input jacks, Heavy duty 24k gold-plated 5-way speaker terminals, 115/230v selector on rear panel, 1U rack mount kit available separately (Model RMK11).
Specifications:
Frequency Response: 20 Hz - 50 kHz, +0/-3 dB, 1 watt.
Total Harmonic Distortion: 0.35% at full rated output, 0.025% at average listening levels.
S/N Ratio: 110 dB at rated output, IHF A-weighted, 103 dB at rated output, unweighted, 93 dB at 2.828 V output, IHF A-weighted, 84 dB at 2.828 V output, unweighted.
IM Distortion: 0.05 %.
Input Impedance: 33 kΩ.
Dimensions: Width: 17.25" (437mm), Height with feet: 2-1/2", Depth: 16" with cables connected.
Net Weight: 20 lb.
